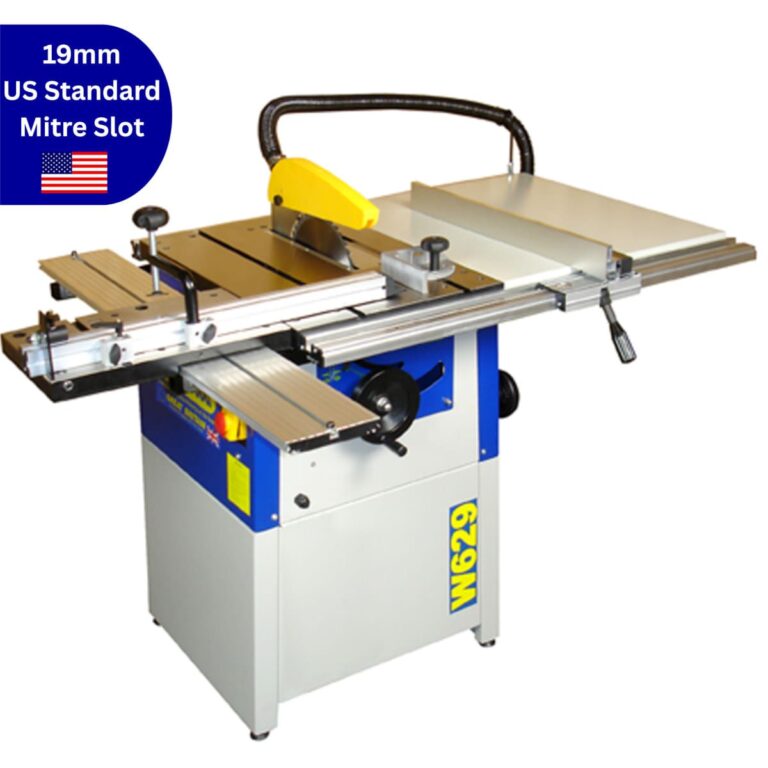

W629 Charnwood 10″ Table saw 75mm deep cut plus sliding table and extension. 3.0hp motor.

NEW Charnwood W629 10″ Cast iron Table saw 75mm deep cut  plus sliding table & panel cutting extension. New version with cam action locking rip fence.

W629 10″ Cast iron table saw.

• Quiet Induction Motor
• Cast Iron Precision Ground Table
• Extension Tables as Standard Equipment
• Sliding Carriage as Standard Equipment
• Separate Handwheels for Blade Adjustment
• 100mm Dust Extraction Outlet
• Solid Floor stand base included
• Optional Wheel Kit
• Makes an ideal machine for a home workshop or small joinery shop, works off a 13amp plug.

First launched in 2015, the W629 has now become our best-selling table saw model. The cutting capacities are big enough for any hobby workshop, providing a level of accuracy only normally found on industrial machinery, with a compact footprint suited to the average-sized workshop.

The main table is precision ground cast iron and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy.

Blade height and blade angle are controlled using 2 separate hand wheels. The sliding carriage included as standard, is a pleasure to use with a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip-over length stop is fitted for repeat cuts.

Supplied with 36 teeth TCT sawblade, sliding carriage, extension tables, sliding mitre fence, floor stand, adjustable feet, 1.7m power cable, and UK 3-pin plug.

There are 3 ways to configure the table saw:
The sliding carriage can be fitted on either side of the blade so that you can work on the left or right.
If you are not using the sliding carriage, you can fit one extension table on either side of the blade.

For compact storage the extension tables and sliding carriage can be quickly removed, (2 minutes). They reassemble without any further setting up required.

Main Table Size	420mm x 635mm
Table Size (with Extensions)	1000mm x 635mm
Maximum Ripping Width Using Fence	730mm
Crosscut Table Size	400mm x 180mm
Maximum Crosscutting Width	500mm (680mm using reverse table)
Blade Tilt	90 – 45 degrees
Cutting Depth at 90 degrees	80mm
Cutting Depth at 45 degrees	64mm
Blade Diameter	250mm
Blade Bore	30mm
Work Table Height	845mm
Mitre Guide T-Slot Width	15/19mm
Mitre Guide T-Slot Depth	7mm
Motor (induction) Braked	2200w (3hp) / 240v
No-Load Blade Speed	4000 rpm
Minimum Blade Width (Kerf)	3.0mm
Dimensions (WxDxH)	1480mm x 1000mm x 1100mm
Weight	110Kg
Assembly Time Required	60 Minutes (Needs 2 People)
Rating	Light Trade
Product Guarantee	5 Years

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build-up of dust and chips. The hose kit supplied collects dust from the sawguard and takes it to the single 100mm diameter hose connection point at the back of the machine.

Please note: It is not possible to use a stacked dado set with this saw.
