Charnwood W619 8″ Table saw with sliding table and extension. 1.5hp quiet induction motor.

W619 saw with an 8″ TCT diameter blade. It comes complete with an upgraded quick-action precision rip fence.

W619 8″ cast iron table saw complete with sliding table, right-hand extension, and leg stand.
Details.

Cast Iron Table Saw with an 8″ diameter blade. Now available with an upgraded quick-action precision rip fence.

• Quiet Induction Motor
• Cast Iron Precision Ground Table
• Extension Tables as Standard Equipment
• Sliding Carriage as Standard Equipment
• Separate Handwheels for Blade Adjustment
• Quick Action Precision Rip Fence
• 100mm Dust Extraction Outlet
• Solid Floor stand Base Included
• Optional Wheel Kit Available

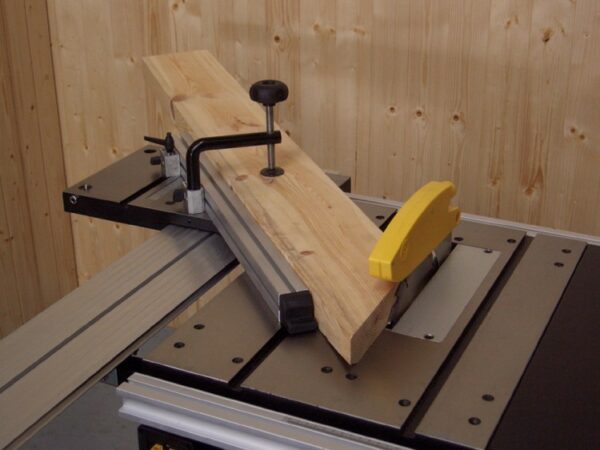

W619 Table saw is a compact, high-quality table saw with a quiet induction motor. The main table is precision ground cast iron and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy. Blade height and blade angle are controlled using 2 separate hand wheels. The sliding carriage included as standard, is a joy to use with a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip-over length stop is fitted for repeat cuts.

Supplied with 18 teeth TCT sawblade, sliding carriage, extension tables, floor stand, adjustable feet, push stick, 2.0m power cable, and UK 3-pin plug.

There are 3 ways to configure the table saw:
The sliding carriage can be fitted on either side of the blade so that you can work on the left or right.
If you are not using the sliding carriage, you can fit one extension table on either side of the blade.

For compact storage the extension tables and sliding carriage can be quickly removed, (2 minutes). They reassemble without any further setting up required.

It makes an ideal machine for the home workshop and works off a 13amp plug.

Specification.

Main Table Size	530mm x 1000mm
Maximum Ripping Width Using Fence	730mm
Crosscut Table Size	400mm x 180mm
Maximum Crosscutting Width	600mm (700mm Using Reverse Table)
Blade Tilt	90 – 45 degrees
Cutting Depth at 90 degrees	60mm
Cutting Depth at 45 degrees	47mm
Blade Diameter	200mm
Blade Bore	30mm
Work Table Height	860mm
Mitre Guide T-Slot Width	15/19mm
Mitre Guide T-Slot Depth	7mm
Motor (induction)	1100w (1.5hp) / 240v
No-Load Blade Speed	4700 rpm
Minimum Blade Width (Kerf)	2.6mm
Dimensions (WxDxH)	1460 x 1010 x 1030mm
Assembly Time Required	60 Minutes (Needs 2 People)
Weight	90Kg
Rating	Light Trade
Product Guarantee	5 Years

It is highly recommended that a dust extractor is used at all times with this saw to prevent the harmful build-up of dust and chips. The hose kit supplied collects dust from the saw guard and takes it to the single 100mm diameter hose connection point at the back of the machine.

Please note: It is not possible to use a stacked dado set with this saw.
