Charnwood W030P2 Spindle Moulder Package Deal with sliding table, block & cutters, router collet & sanding drum rebate block W522 wheel kit.

Charnwood W030P2 Spindle Moulder Package Deal with sliding table, block & cutters, router collet & sanding drum rebate block W522 wheel kit.

Charnwood W030P2 Spindle Moulder with Sliding carriage W030RC 1/2′ Routing Collet CB9830 Cutterblock with Straight Knives & 6 Profiles W030SD Sanding Drum Kit with 3 Sizes of Drum, rebate block and W522 wheel kit.

Spindle Moulder Package Deal 2 – Save £70
Package Includes;

• W030 Spindle Moulder with Sliding carriage
• W030RC 1/2” Routing Collet
• CB9830 Cutterblock with Straight Knives & 6 Profiles
• W030SD Sanding Drum Kit with 3 Sizes of Drum
• WHRCB100: Rebate Block with Spur Cutters

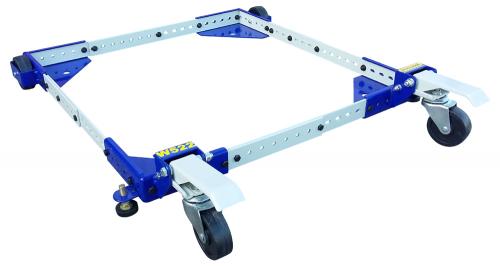

• W522: Universal Wheel Base

For most people purchasing our W030 Spindle Moulder, it will be the first moulder they have owned and therefore they will also require some tooling. Although there is a vast range of tooling available in the market we have chosen some and bundled it together to form a great value package.

• Cast Iron Main Table
• Cast Iron Tenonning Table
• Cast Iron Cutter Hood
• 4 Speeds; Softwood, Hardwood, Routing, Sanding
• Maximum Tooling Diameter 160mm
• Independently Adjustable Fences
• 100mm Diameter Extraction Outlet

Fitting neatly into the gap between the heaviest router table and an industrial sized spindle moulder this machine is ideally suited to small professional workshops.
A precision ground cast iron table, a steel base cabinet and a 2hp induction motor are the basic ingredients which make up this fantastic recently upgraded spindle moulder. The height of the spindle, which is a standard 30mm diameter, is controlled by the large hand wheel which can then be locked in position.

A simple belt change selects the correct spindle speed for the tooling. The new 4 speed version provides even more versatility;

• 1500rpm – Drum Sanding
• 4500rpm – Moulding Hardwoods
• 6500rpm – Moulding Softwoods
• 8500rpm – Routing

The cutter hood is cast iron with a dust outlet at the centre providing efficient extraction for this machine which can produce a high volume of dust and chips. An extractor with 1000 cubic metres an hour airflow is recommended to cope.
The two aluminium fences are adjustable to set the width of the opening, to suit the cutters being used. The outfeed fence can also be stepped out, controlled by a fine pitch thread adjuster, for operations where the complete edge of the workpiece is being removed. Fully adjustable guards are connected to a hinged plate which can quickly be lifted to allow clear access to change the tooling.
The sliding carriage consists of a cast iron table with four bearing guides running along an aluminium extrusion. The fence angle can be set accurately between 90 and 45 degrees with a useful stop to quickly return to 90 degrees again. A hold down clamp and a length stop complete the equipment.

Supplied with sliding carriage, Set of spindle shims, 4 adjustable height rubber feet, 1.9m power cable and UK 3 pin plug.

SPECIFICATION.

Motor (induction)	1500w, 240v
Main table size	600mm x 400mm
Sliding table size	400mm x 180mm
Spindle diameter	30mm
Speeds	4 (1500, 4500, 6500 & 8500rpm)
Vertical stroke	110mm
Table aperture diameter	160mm
Table aperture depth	50mm
Table height	870mm
Fence size	125mm x 700mm
Dust extraction outlet	100mm
Dimensions (WxDxH)	830mm x 1070mm x 1280mm
Weight	95kg
Assembly Time Required	60 Minutes (Needs 2 People)
Rating	Light trade
Product Guarantee	5 Years

• Extra carriage charges may apply to Scottish Highlands, please enquire.

.
