Holzstar ADH 26C 258wide x 225mm deep Planer/Thicknesser 1700watt motor 230V
£1,165.90 Inc. VAT
SKU: ADH26CFree Delivery On This Item
BRIEF DESCRIPTION
Holzstar ADH 26C 258wide x 225mm deep Planer/Thicknesser 1700watt motor 230V with three knife cutter block
PRODUCT VIDEO
Description
Delivered to your door, no extra carriage charge.
Holzstar ADH 26C 258wide x 225mm deep Planer/Thicknesser 1700watt motor 230V
Holzstar ADH 26C 258wide x 225mm deep Planer/Thicknesser 1700watt motor 230V with knife cutter block.
- For angular joining (90 °) and straightforward dressing of solid wood boards, planks and strips
- Simple and precise adjustment of the chip removal in dimensionally accurate thickness planing
- Automatic workpiece feed

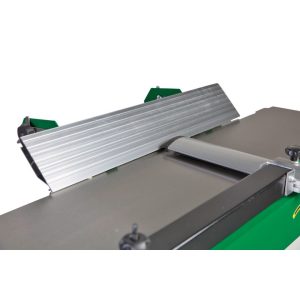

- Easily adjustable aluminum dressing fence, tiltable from 90 ° to + 45 °
- Large dimensioned dressing table made of ribbed die-cast aluminum
- Large thick cast iron table with ground surface
- Integrated, foldable chip extractor hood
Specification.
Dimensions and weights
- Length approx.: 1120 mm
- Width/depth approx.: 630 mm
- Height approx.: 960 mm
- Weight approx.: 170 kg
Extraction port
- Extraction port diameter thickness: 100 mm
- Extraction port diameter joints: 100 mm
Feed
- Speed: 5.5 m/min
Jointing
- Max. cutting depth: 3 mm
- Planing stop pivoting range: 90 – 45 °
Planing knife shaft
- Type: Strip planer blade shaft
- Number of planing blades: 3
- Speed: 5200 min¯¹
- Max. planing width: 258 mm
Thicknesser
- Working height min.: 5 mm
- Working height max.: 225 mm
- Max. cutting depth: 3 mm
Electrical Data
- Drive motor output: 1.7 kW
- Absorbed power drive motor: 2.3 kW
- Supply voltage: 230 V
- Mains frequency: 50 Hz
