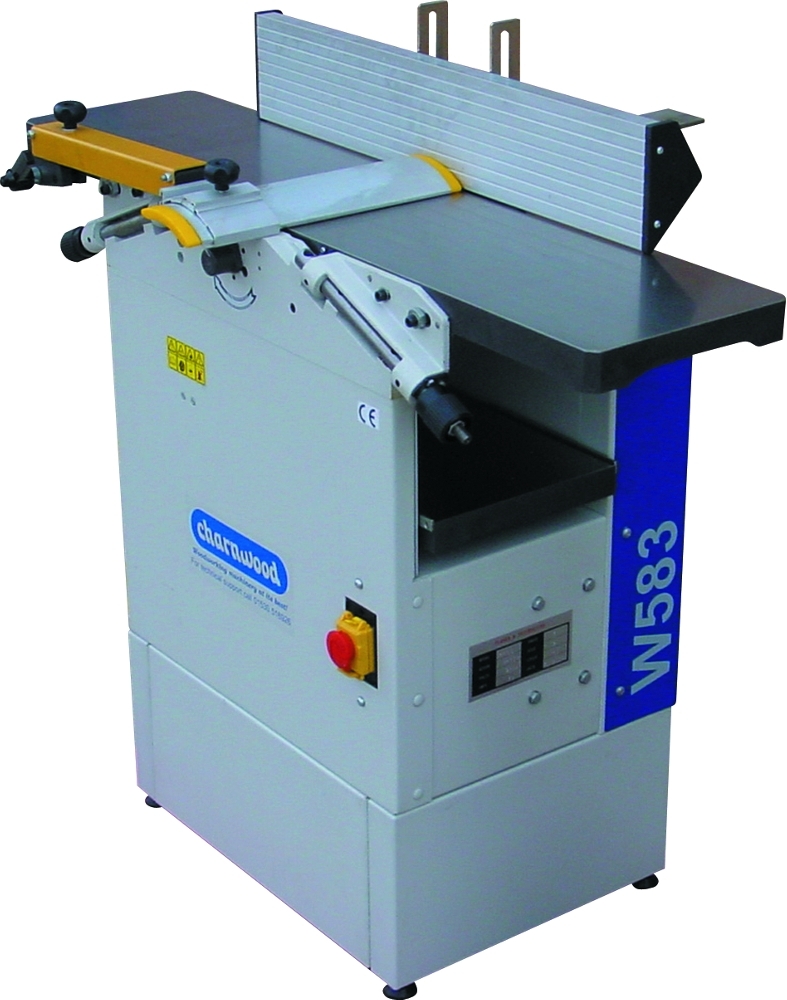

Charnwood W583 Trade Quality Planer Thicknesser 250mm Cast Iron Construction

W583 Planer thicknesser with 3 knife block.

  Runs on standard 13amp supply.

Specification.

A solid and well finished planer thicknesser for the busy workshop.

• Precision Ground Cast Iron Beds
• 2hp Induction Motor
• 3 Knife Cutterblock for Superior Finish
• 10” Planing Capacity
• 10” x 7” Thickness Capacity
• Rubber Coated Outfeed Roller
• 100mm diameter Dust Extraction Outlet
• Optional Wheel Base Available

Precision ground cast iron beds and a long tilting fence which can be positioned at any point across the table make this machine a delight to use. The 3 knife cutterblock is powered by a 2hp induction motor and is capable of a cut up to 5mm deep in a single pass.

To gain better visibility and access for thicknessing, both of the planing beds are hinged and swing out of the way, without using any tools. A dust hood / cutter gaurd is then swung into position and the conversion to Thicknesser is complete.

The feed roller drive, which features a rubber outfeed roller, can be disengaged during planing operations to save motor power and general wear on the machine.

Supplied with 3 knives, 100mm dust extraction outlet, 4 adjustable feet, 1.6m power cable and UK 13 amp plug.
Our planer thicknesser will run off any standard 13amp supply.

• Extra carriage charges may apply to Scottish Highlands, please enquire.

Surfacing width	250mm (10″)
Length of surfacing tables	1085mm
Maximum depth of cut	5mm
Fence tilt	90 – 45 degrees
Table height	856mm
Thicknessing capacity	5-195mm (1/4″-7″)
Length of thicknessing table	600mm
Feed speed	5.5m/min
Maximum depth of cut	2.5mm
Cutterblock speed	4000rpm
Number of knives	3
Motor ( induction)	1500w (2hp)
Dimensions (WxDxH)	1100mm x 780mm x 1050mm
Weight	150kg
Assembly Time Required	45 Minutes (Needs 2 People)
Rating	Trade
Product Guarantee	5 Years

It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
