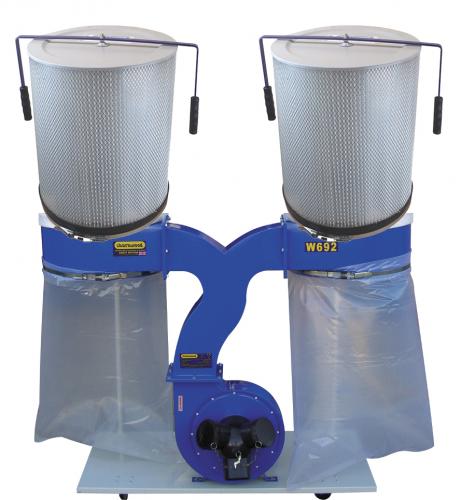

W692CF 3hp Dust Extractor With 1 Micron Cartridge Filters 230volt

W692CF 3hp Dust Extractor With 1 Micron Cartridge Filters 230volt. 3 Inlets for simultaneous extraction.

The largest extractor is aimed at workshops where extraction is not continuously needed.

• Powerful & Quiet 3hp Induction Motor 16amp.
• 2 Inlets For Simultaneous Extraction
• Quick Action Bag Straps
• Transparent Heavy Duty Collection Bag
• 1 Micron Cartridge Filters
• 16amp, 240v Electric Supply Required
• Drum Bag Clips to make easy work of changing the collection bag
• Rubber Band on the Drum to give a better seal

These more powerful machines give a higher flowrate per hour which allows a longer hose length to be attached or a small system of branches and gates to be fitted around the workshop.
The largest in this range is for users who occasionally need a very high air volume. The two collection bags are filled together so that emptying is required less frequently. It can be used to collect from up to three machines simultaneously or attached to a system of branches and gates to be fitted around the workshop. Maximum recommended total hose length is 10 metres.

The standard cloth filtration bags are replaced with a cartridge to increase the filtration performance down to a super fine, 1 micron particle size. The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.

This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range.  The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders.

To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handles after each use, moves the internal paddles which clean the inside of the filter and prevent clogging.

Supplied with 1 micron cartridge filters, transparent collection bags, durable steel fan, NVR switch, rubber wheels, quick release metal straps, 3 way inlet and 1.6m power cable (No plug).

A 16amp fixed electric supply is required to run this machine. We recommend using a 16amp plug.

Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
This machine is intended for Light Trade use which means it has a maximum continuous running time of 2 hours, after which the motor must be rested and left to cool.

3HP Dust Extractor with 1 Micron Cartridge Filters Upgrade – SAVE ?30

The largest extractor aimed at workshops where extraction is not continuously needed.

• Powerful & Quiet 3hp Induction Motor
• 2 Inlets For Simultaneous Extraction
• Quick Action Bag Straps
• Transparent Heavy Duty Collection Bag
• 1 Micron Cartridge Filters
• 16amp, 240v Electric Supply Required
• Drum Bag Clips to make easy work of changing the collection bag
• Rubber Band on the Drum to give a better seal

These more powerful machines give a higher flowrate per hour which allows a longer hose length to be attached or a small system of branches and gates to be fitted around the workshop.
The largest in this range is for users who occasionally need a very high air volume. The two collection bags are filled together so that emptying is required less frequently. It can be used to collect from up to three machines simultaneously or attached to a system of branches and gates to be fitted around the workshop. Maximum recommended total hose length is 10 metres.

The standard cloth filtration bags are replaced with a cartridge to increase the filtration performance down to a super fine, 1 micron particle size. The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.

This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range. The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders.

To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handles after each use, moves the internal paddles which clean the inside of the filter and prevent clogging.

Supplied with 1 micron cartridge filters, transparent collection bags, durable steel fan, NVR switch, rubber wheels, quick release metal straps, 3 way inlet and 1.6m power cable (No plug).

A 16amp fixed electric supply is required to run this machine. We recommend using a 16amp plug.

Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.
This machine is intended for Light Trade use which means it has a maximum continuous running time of 2 hours, after which the motor must be rested and left to cool. If you need need a longer duty cycle than this please look at our professional heavy duty range of extractors.

SPECIFICATION.

Motor (induction)	2200w (3hp), 240v
Flowrate (cubic metres per hour)	3000m3/hour
Inlet diameter	1 x 150mm or 3 x 100mm
Collection bag capacity	296 Litres
Maximum continuous run time	2 hours
Dimensions (WxDxH)	1560mm x 550mm x 1920mm
Weight	75kg
Assembly Time Required	60 Minutes
Rating	Light Trade
Product Guarantee	5 Years
