Charnwood W791/3 Professional Dust Extractor 3phase

Up to 8 hours continual ruing 3-phase

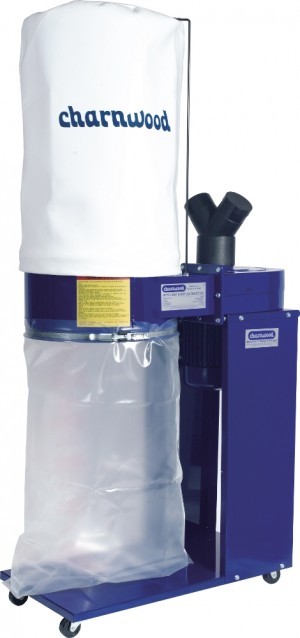

W791/3 Professional dust extractor made from heavy duty gauge steel with a indestructible fan.

A powerful professional twin bag dust extractor with ample flow rate to extract from two machines at the same time.

• Quiet Induction Motor
• Up to 8 hours Continual Running
• Super Fine 2 micron Filter
• Transparent Collection Bag
• Wheels Included For Portability

These larger collectors are ideal for locations where the extractor will be cited a long way from the dust source. The higher flowrate also allows a small system of branch lines to be fitted around the workshop to allow extraction from a variety of machines.

We now fit as standard a super fine 2 micron cloth filter, making the unit suitable even for MDF dust.

Maximum recommended total hose length is 7 metres.

Supplied with transparent collection bag, durable steel fan, NVR switch, rubber wheels, quick release metal straps, Y branch and 1.6m power cable (No plug).

Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.

A 415v, 3 phase electric supply is required for this machine.

Specification.

Motor (Induction)	1500w (2hp)
Voltage	415v, 3 phase
Airflow (Without Bag)	2130 m3/hour (1600CFM)
Max. Static Pressure	183mmAq (7.2 InH2O)
Impellor Size	305mm (12″)
Inlet Dimensions	1 x 124mm or 2 x 100m
Bag Capacity	148 Litres
Filtration	2 microns
Noise Level (@3m)	81dB
Dimensions (WxDxH)	880mm x 550mm x 1920mm
Weight	60 Kg
Assembly Time Required	60 Minutes (Needs 2 People)
Rating	Industrial
Product Guarantee	5 Years
